PRODUCTS
SPECIAL FASTENERS
Products can be produced to customer drawings or the relevant British (BS), American (ASME, ANSI), European (DIN, UNI) or International Standards (ISO).
The size ranges M3 to M64 Metric and 3/16" to 2.1/2" Imperial can be supplied. Thread forms include UNC, UNS, UNF, BSW, BSF, Whitworth, Metric, Metric Fine.

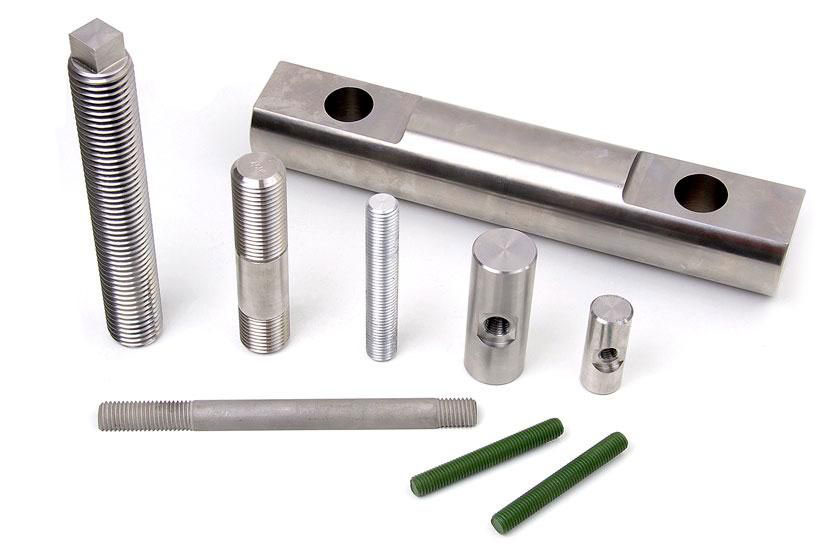

Studbolts/Studs/Studding. Studbolts can be supplied in cut lengths and Studding in full bar lengths upto 4 metres long. Din 975, Din 976, BS4882, BS4439, Din 938, ANSI/ASME B16.5. Special machined components, like bobbins or crossbars.

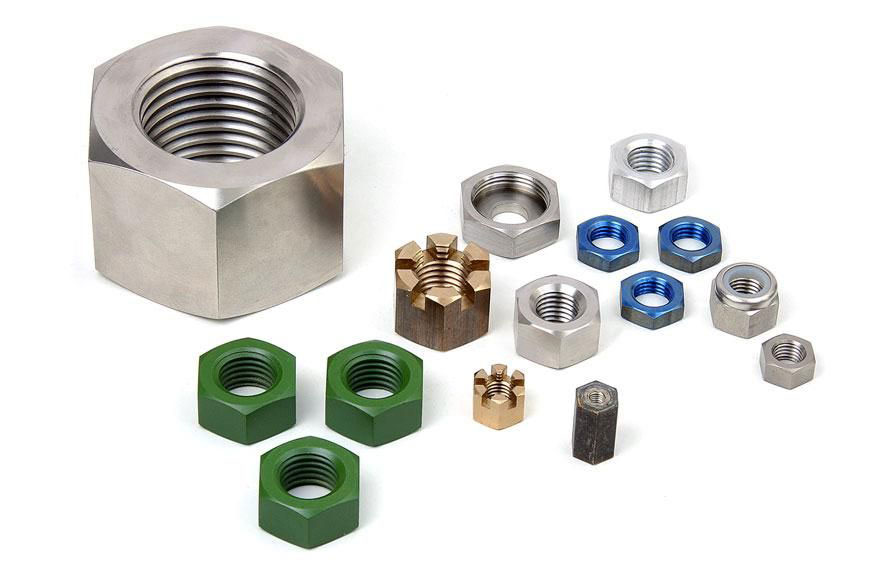

Hexagon Nuts/Lock Nuts/Nyloc Nuts, Din 934, Din 439, Din 985, Din 980, BS3692, BS1769, BS1768, BS1083, ISO 4032.

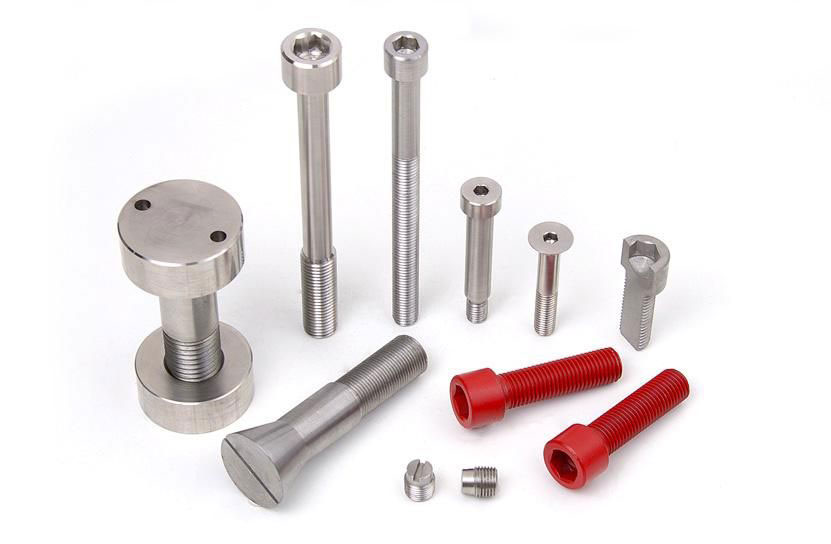

Socket Capscrews/Socket Countersunk Screws/Socket Setscrews. BS4168, BS2470, Din 912, ANSI/ASME B18.3, ISO 4762.

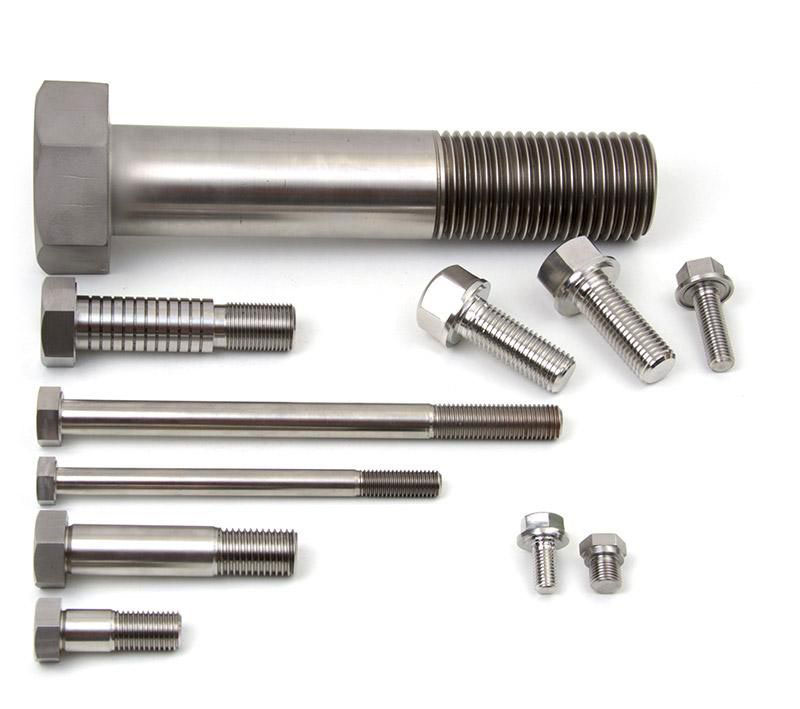

Hexagon Head Bolts/Sets, BS1769, BS1768, BS1083, DIN 931, DIN 933, ANSI/ASME B18.2.1 Table 2,3,4 & 6, ISO 4014, ISO 4017.
| Materials | |
|---|---|
| 1 | Super Duplex UNS S32760 |
| 2 | Super Duplex UNS S32750 |
| 3 | Super Duplex UNS S32550 |
| 4 | UNS S32760 FLT |
| 5 | UNS S32760 SA | 6 | Zeron 100 SA ® |
| 7 | Zeron 100 FLT ® |
| 8 | Hastelloy C276 ® |
| 9 | Hastelloy C22 ® |
| 10 | Hastelloy B2 ® |
| 11 | Hastelloy B3 ® |
| 12 | Hastelloy X ® |
| 13 | Inconel Alloy 600 ® |
| 14 | Inconel Alloy 625 ® |
| 15 | Inconel Alloy 686 ® |
| 16 | Inconel Alloy 718 ® |
| 17 | Inconel Alloy 725 ® |
| 18 | Incoloy Alloy 800 ® |
| 19 | Incoloy Alloy 825 ® |
| 20 | Incoloy Alloy 925 ® |
| 21 | Titanium Grade 2 |
| 22 | Titanium Grade 5 |
| 23 | Titanium Grade 7 |
| 24 | Monel Alloy 400 ® |
| 25 | Monel Alloy K500 ® |
| 26 | Ferralium ® |
| 27 | Carpenter ® 20Cb-3, Alloy 20 |
| 28 | Stainless Steel UNS S31254 |
| 29 | Avesta 254SMO ® |
| 30 | Duplex,UNS S31803, 1.4462 |
| 31 | Stainless Steels A4, A2, A4-80, A2-80 |
| 32 | BS970 316S11,BS970 304S11,BS970 431S29,BS970 321S31 |
| 33 | ASTM A193 B8M, BS4882 B8M, B8, B8C, B8T Class 1 & 2 |
| 34 | Aluminium Bronze BS2874 CA104/M, NES 833 |
| 35 | Aluminium Silicon Bronze NES 834 |
| 36 | Aluminium Bronze, Astm B150 C63000 |
| 37 | Silicon Bronze UNS C65500 |
| 38 | Hiduron 191 NES 835 |
| 39 | Nimonic Alloy 80A |
| 40 | Nitronic 50 |
| 41 | Nitronic 60 |
| 42 | Alloy 286/660 A/B/C/D |
